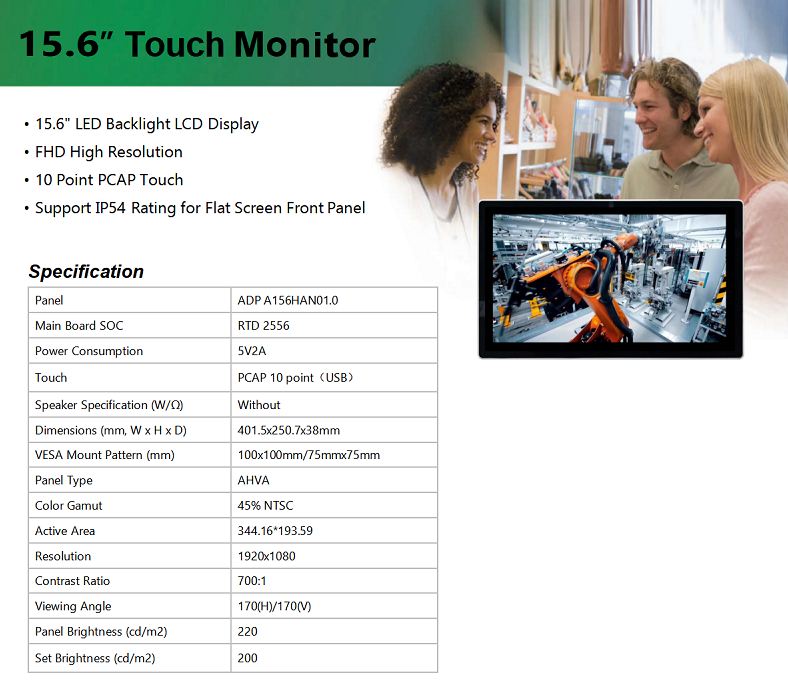

GN156FNN01.0 15.6” Touch Monitor
15.6” LED Backlight LCD Display
FHD High Resolution
10 Point PCAP Touch
Support IP54 Rating for Flat Screen Front Panel
Specification
Panel | ADP A156HAN01.0 |
Main Board SOC | RTD 2556 |
Power Consumption | 5V2A |
Touch | PCAP 10point(USB) |
Speaker Specification(w/Ω) | Without |

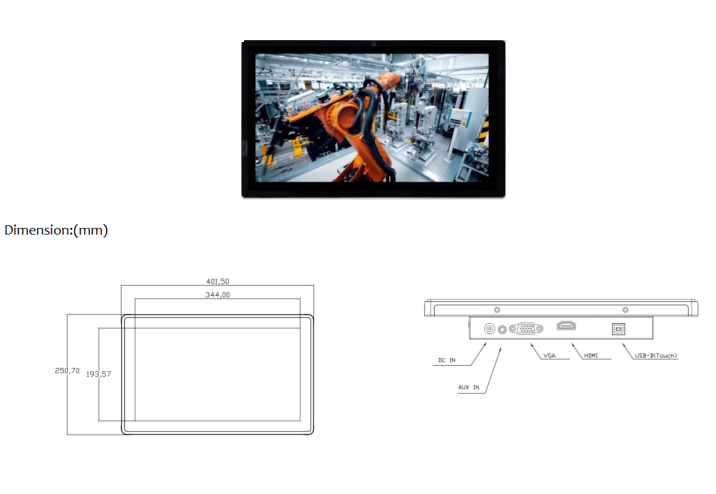

Dimensions（mm,W*H*D） | 401.5*250.7*38mm |
VESA Mount Pattern(mm) | 100*100mm/75mm*75mm |
Panel Type | AHVA |
Color Gamut | 45%NTSC |
Active Area | 344.16*193.59 |
Resolution | 1920*1080 |
Contrast Ratio | 700:1 |
Viewing Angle | 170(H)/170(V) |
Panel Brightness(cd/m2) | 220 |
Set Brightness(cd/m2) | 200 |
液晶屏选型或替代不能只比较尺寸和分辨率，还应核对外形尺寸、有效显示区域、信号接口、连接器定义、供电电压、背光参数、工作温度及安装结构。不同批次或版本的规格可能存在差异，正式使用前建议依据当前规格书完成点屏、装机和环境测试。如需确认产品状态、替代型号、驱动板或触摸屏配套，请联系杭州旭虹技术人员。
