AT070TN83V.1 设计变更 AT070TN83V.1 design change
變更主题
Subject of Change
AT070TN83V.1 設計變更
AT070TN83V.1 design change
變更原因
Reason of Change
因為 Himax IC EOL, 玻璃進版搭配新IC
Due to Himax IC EOL, INX need to design change panel and match with new IC.
變更内容

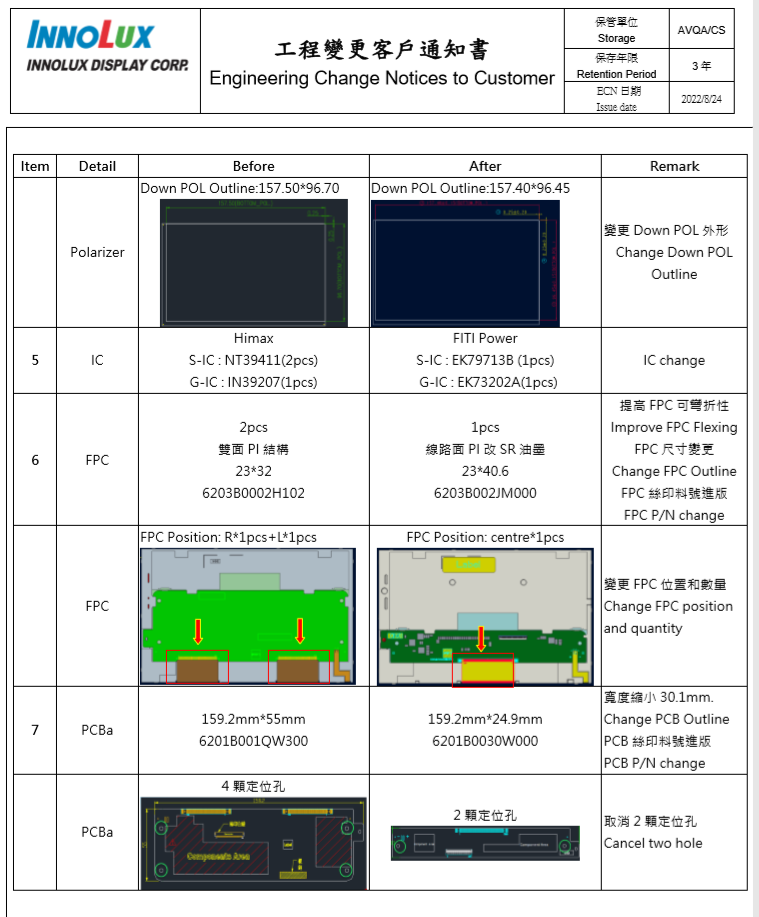

Item | Detail | Before | After | |
1 | Model name | AT070TN83 V.1 | AT070TN83 V.1 | |
2 | Finish Product | GP070ZAG0010S | GZ0700AG0015S | |
3 | Pane | Panel Outline : 161.80*101.40 | Panel Outline :160.00*101.15
| |
4 | Polarizer | Up-POL 矢印 Mark Y Down-POL 矢印 Mark Y 硬膠 Up | Up-POL 矢印 Mark A Down-POL 矢印 Mark B 軟膠 | |
Polarizer | UP POL. Outline : 154.35*93.35
| UP POL. Outline :154.25*93.30
| ||
Polarizer | Down POL Outline:157.50*96.70
| Down POL Outline:157.40*96.45
| ||
5 | IC | Himax S-IC : NT39411(2pcs) G-IC : IN39207(1pcs) | FITI Power S-IC : EK79713B (1pcs) G-IC : EK73202A(1pcs) | |
6 | FPC | 2pcs 雙面 PI 結構 23*32 6203B0002H102 | 1pcs 線路面 PI 改 SR 油墨 23*40.6 6203B002JM000 | |
FPC | FPC Position: R*1pcs+L*1pcs
| FPC Position: centre*1pcs
| ||

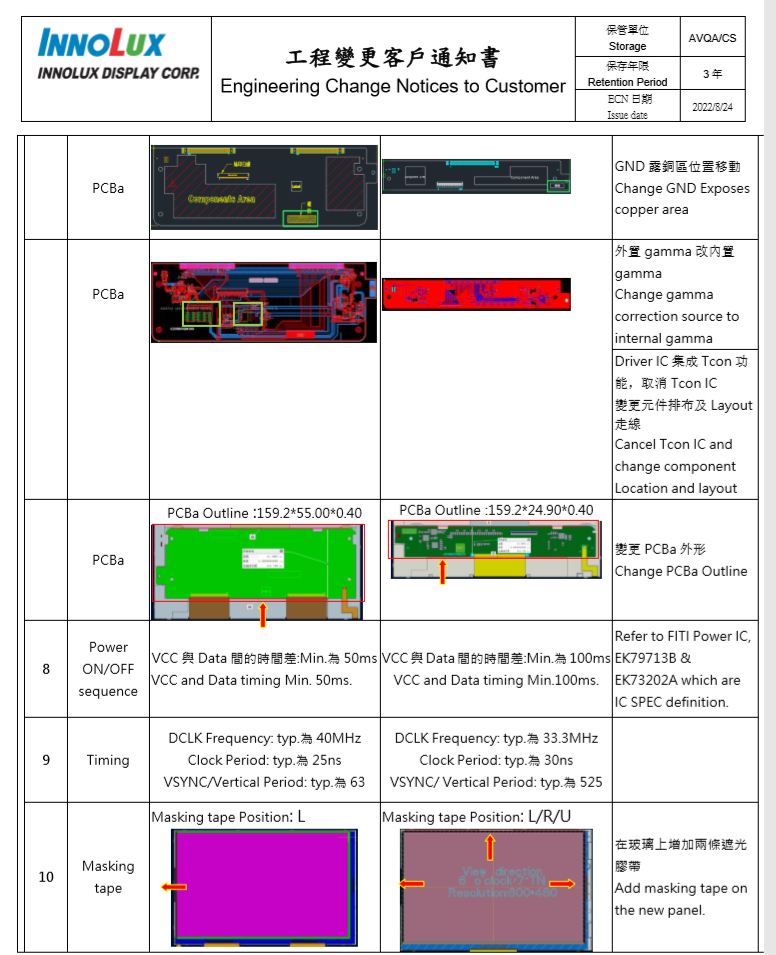

7 | PCBa | 159.2mm*55mm 6201B001QW300 | 159.2mm*24.9mm 6201B0030W000 | |
PCBa |
|
| ||
PCBa |
|
| ||
PCBa |  |
| ||
PCBa |
|
| ||
8 | Power ON/OFF sequence | VCC 與 Data間的時間差:Min.為 50ms VCC and Data timing Min. 50ms | VCC與Data間的時間差:Min.為100ms VCC and Data timing Min.100ms. | |
9 | Timing | DCLK Frequency: typ.為 40MHz Clock Period: typ.為 25ns VSYNC/Vertical Period: typ.為 63 | DCLK Frequency: typ.為 40MHz Clock Period: typ.為 25ns VSYNC/Vertical Period: typ.為 63 | |
10 | Masking tape |
|
| |
11 | Frame |
|
| |
12 | Reflector | Toray_XJSH-150 | 長陽_EST150 | |
13 | Light Bar 發光二極體 燈條 | 供應商:群志/Vender: INX PN: 6C01M000QK00R | 供應商: 鴻海/Vender: Honhai PN: 6C01B000YE300 | |
14 | Packing | FS local vendor | NJ local vendor | |
|  | |||
|
| |||
|
| |||
 |
| |||
|
|

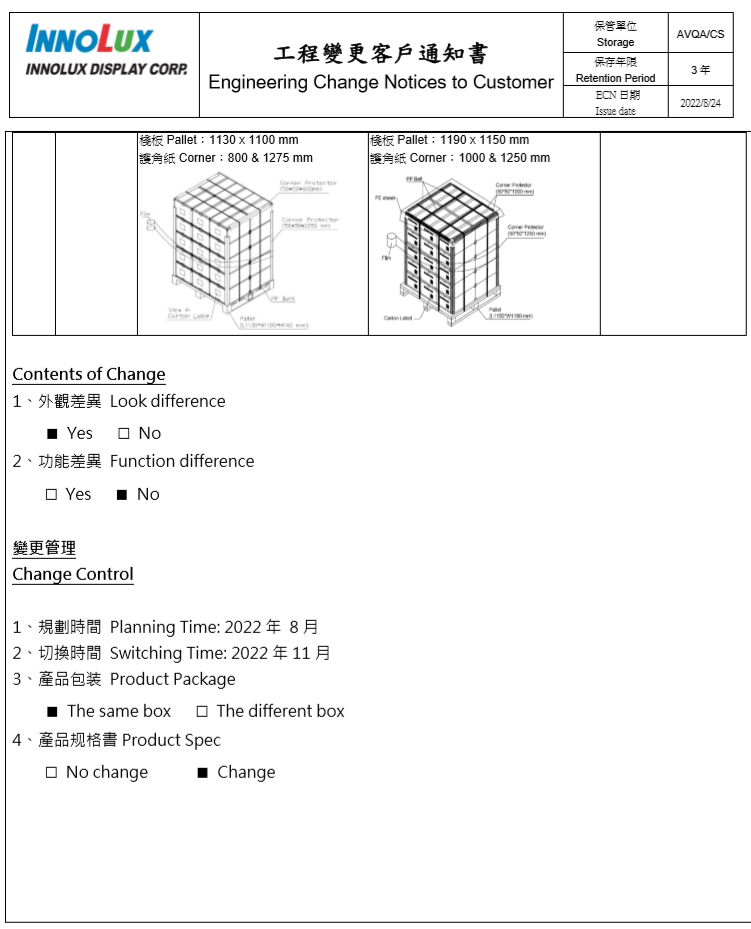

Contents of Change
1、外觀差異 Look difference
■ Yes □ No
2、功能差異 Function difference
□ Yes ■ No
變更管理
Change Control
1、規劃時間 Planning Time: 2022 年 8 月
2、切換時間 Switching Time: 2022 年 11 月
3、產品包装 Product Package
■ The same box □ The different box
4、產品规格書 Product Spec
□ No change ■ Change
5、AT070TN83V.1 实物背面对比图
群创AT070TN83 V.1新旧版本不能直接替代，老版本已经没有货了，现在都要陆续切换到新版本，新版本使用软件需要稍作调整的。
